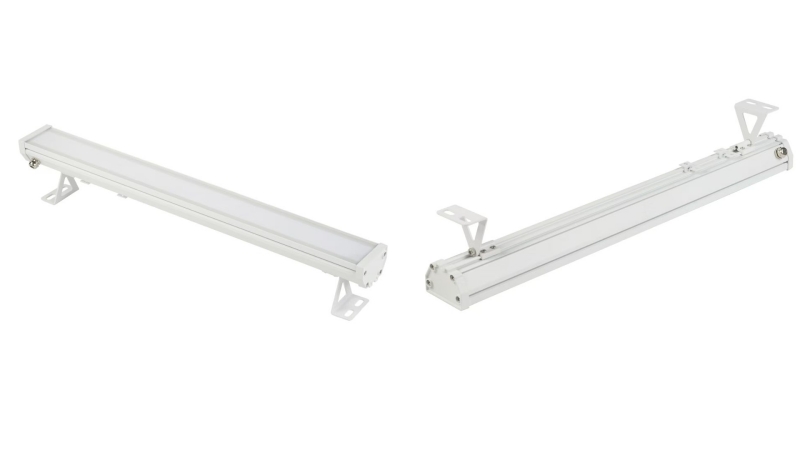

Lighting Fixture Technical Parameters

• Luminous Flux: ≥8400Lm
• Protection Rating: ≥IP54
• Fixture Power: 60W
• Input Voltage: AC220V
• Color Temperature: 4000K, 5000K, 6000K (optional)
• Fixture Structure: Aluminum body + tempered glass
• Dimming Function: 0-10V dimming
• Fixture Dimensions: 1182*64mm

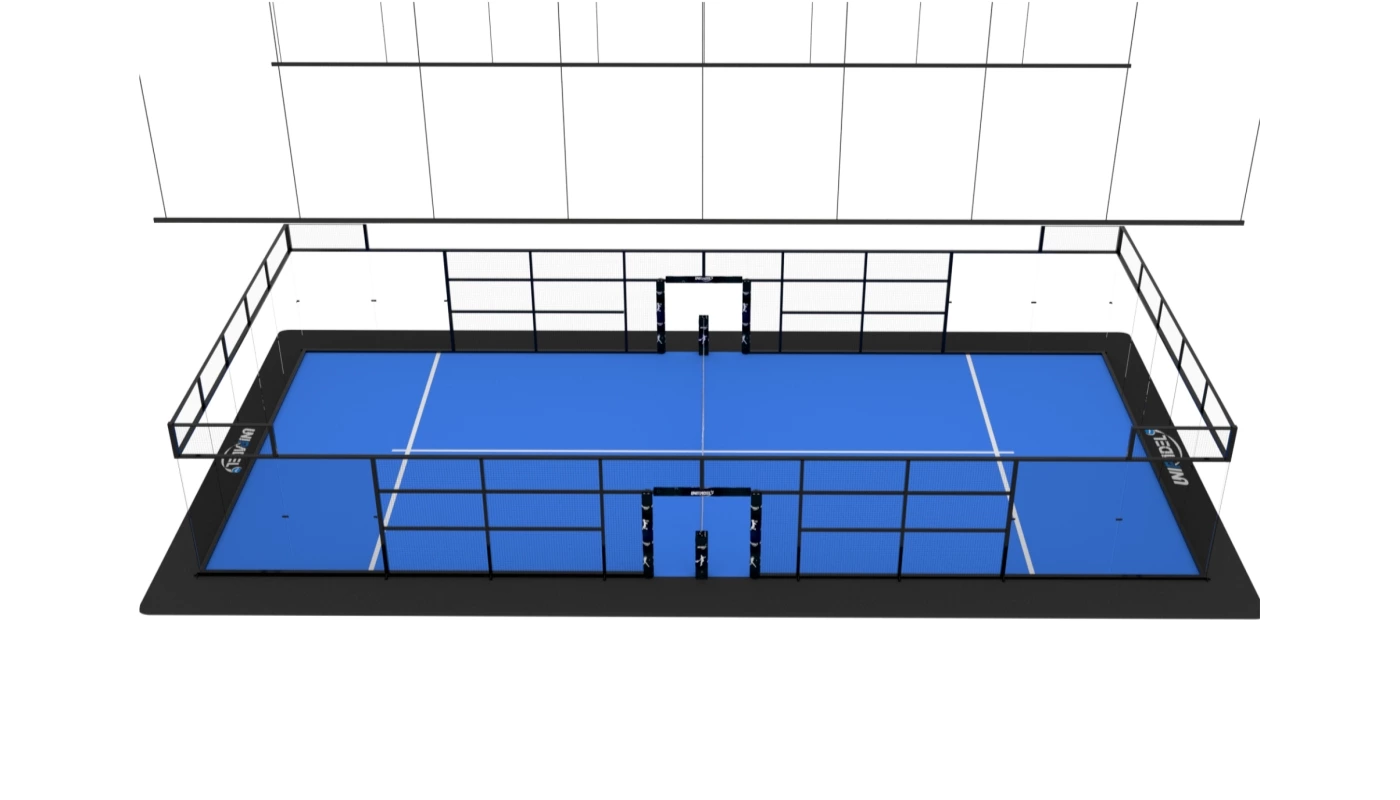

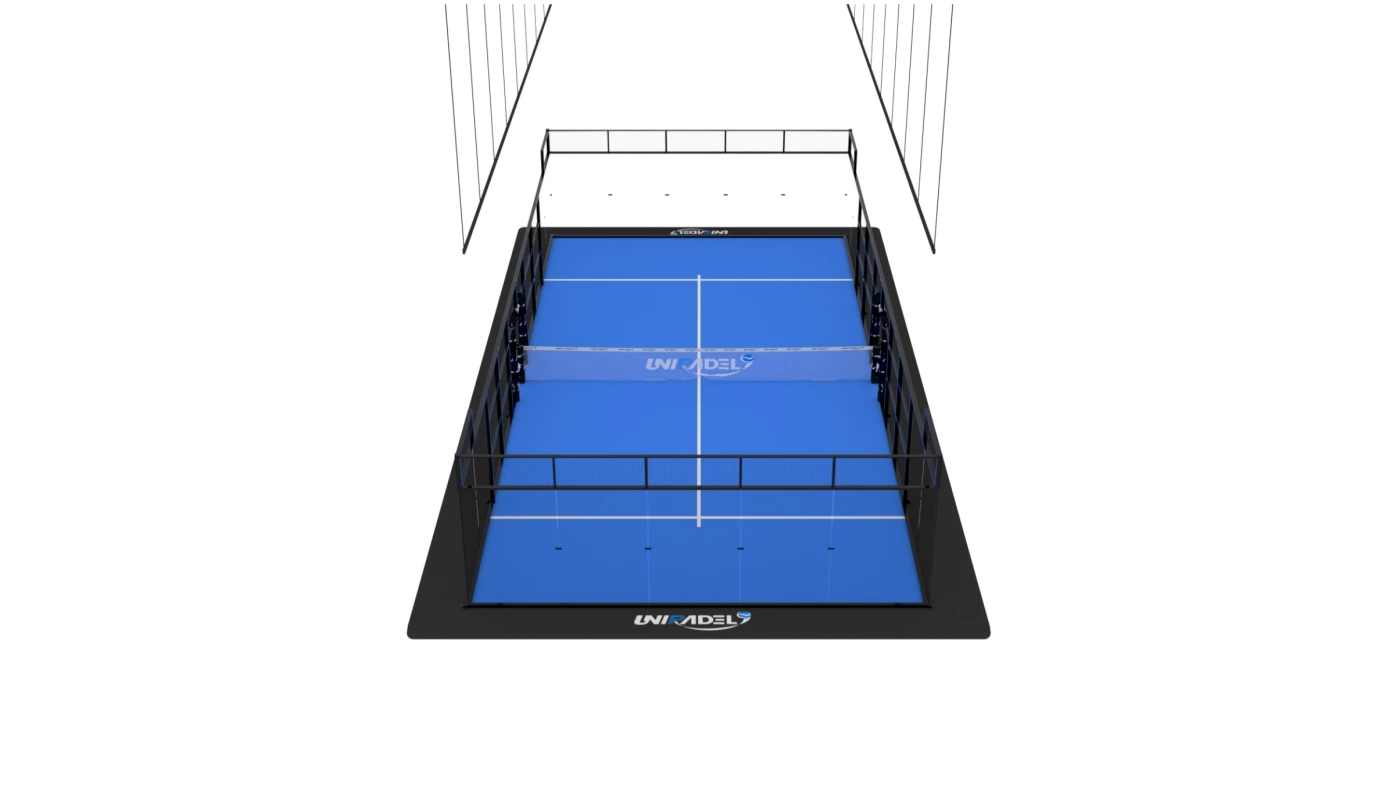

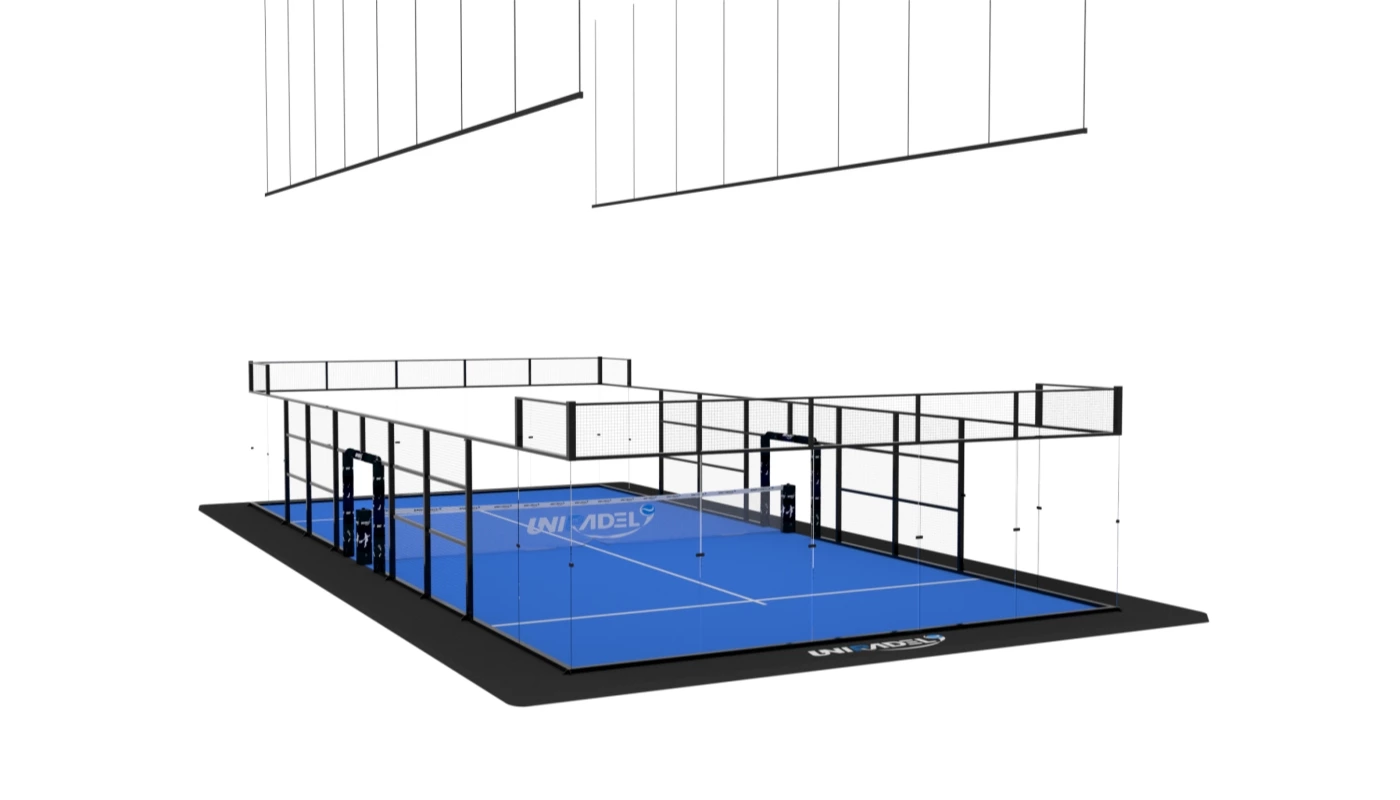

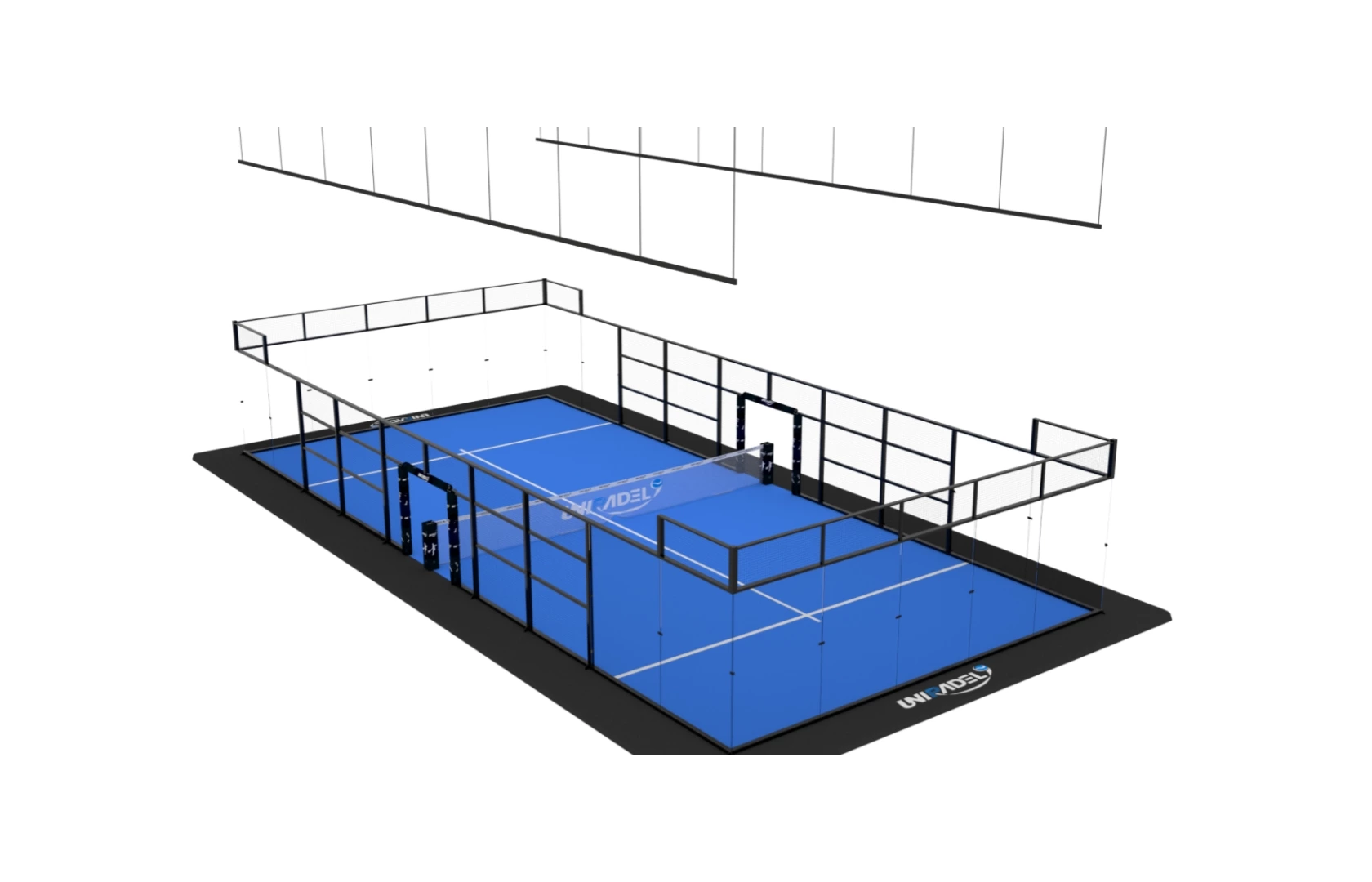

Installation method

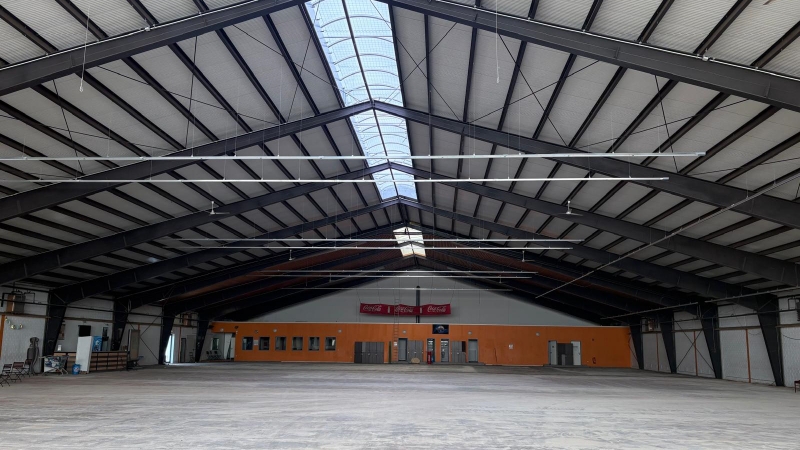

The linear lights are installed using a modular hanging method: First, the mounting clips provided by us are fixed to the customer's 50×50 metal square tube in groups of 1.2 meters. Then, the 1.2-meter linear light strips are inserted into the clips one by one and fixed into a whole. Finally, the assembled square tube is suspended from the ceiling using a load-bearing matching hoisting chain, and the chain length is adjusted to keep the light body horizontal. Before installation, the square tubes need to be cut according to the site dimensions and allowance is reserved for splicing to ensure structural stability and uniform lighting effect.

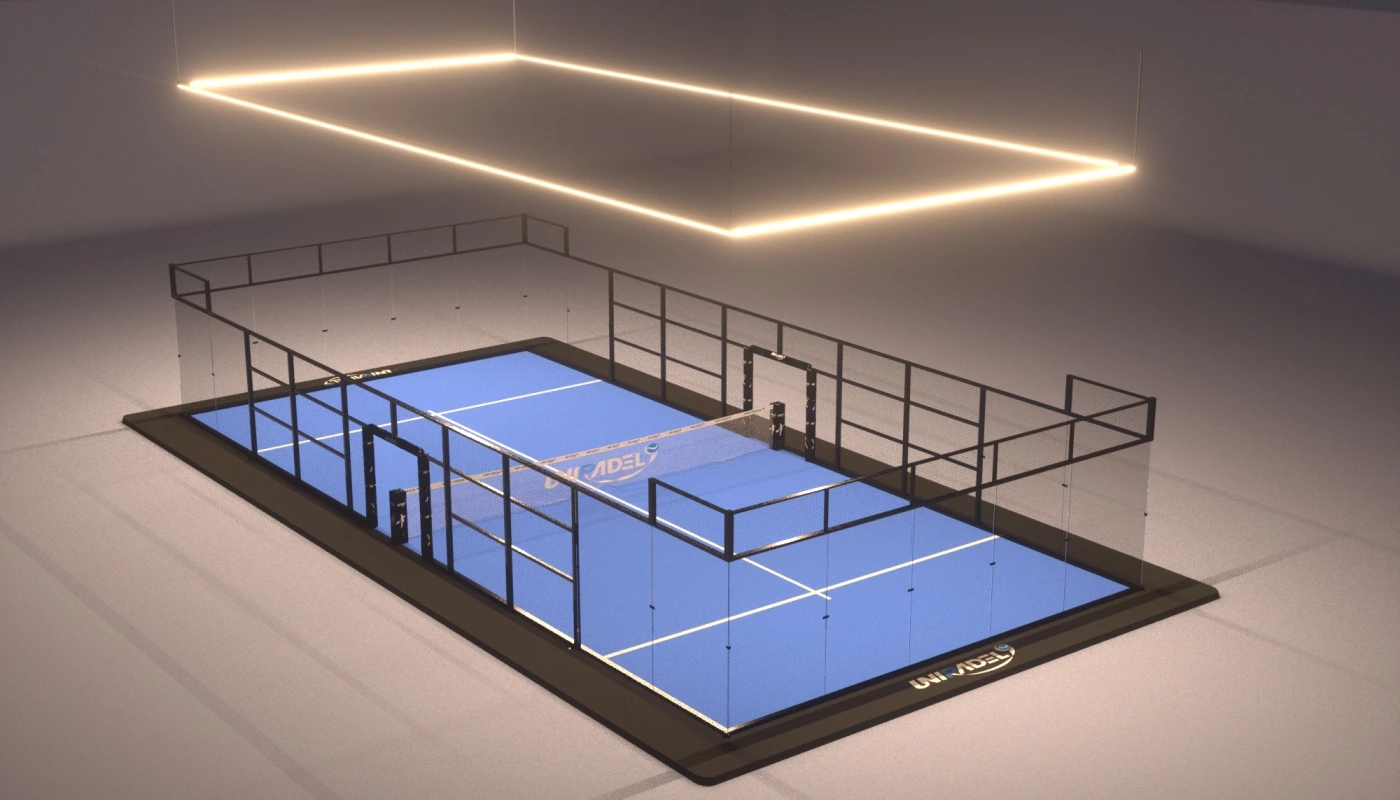

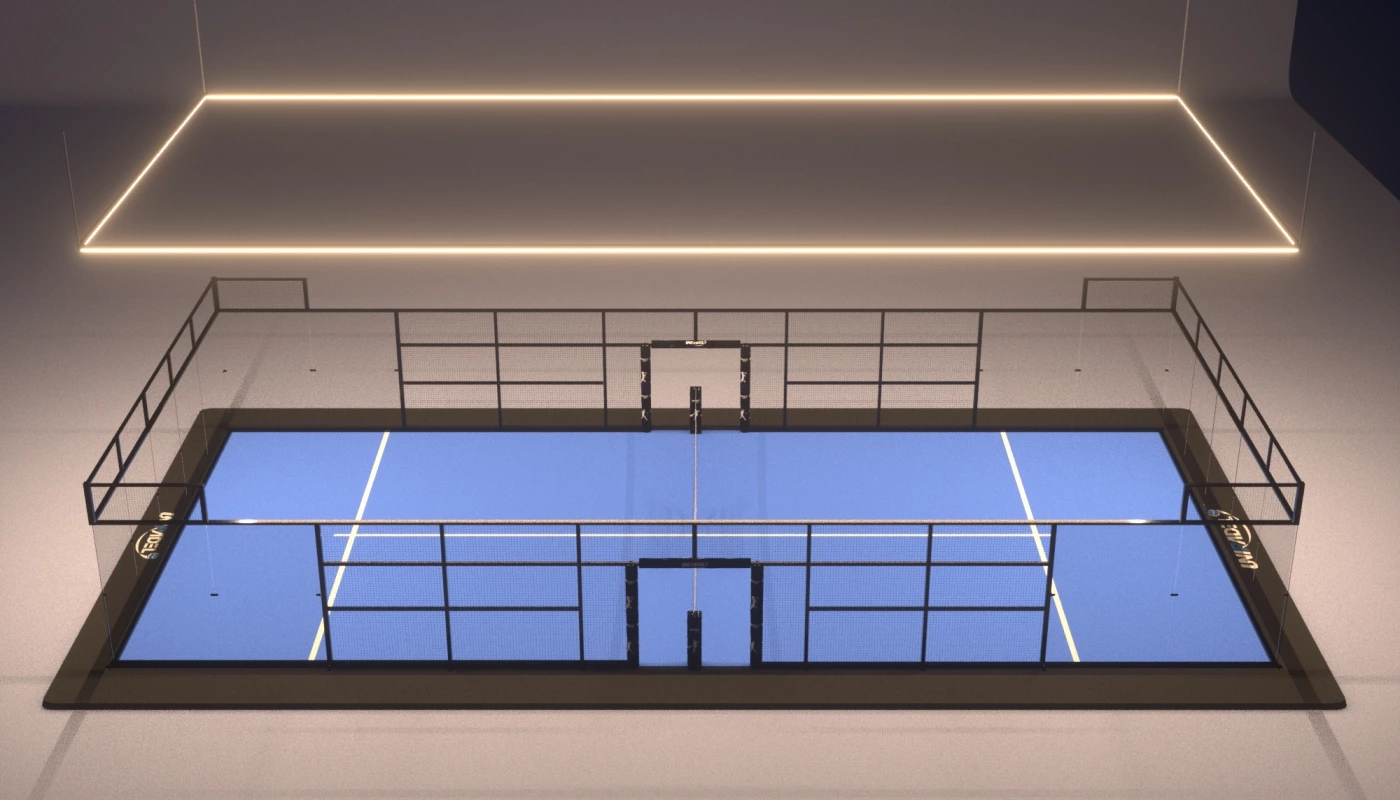

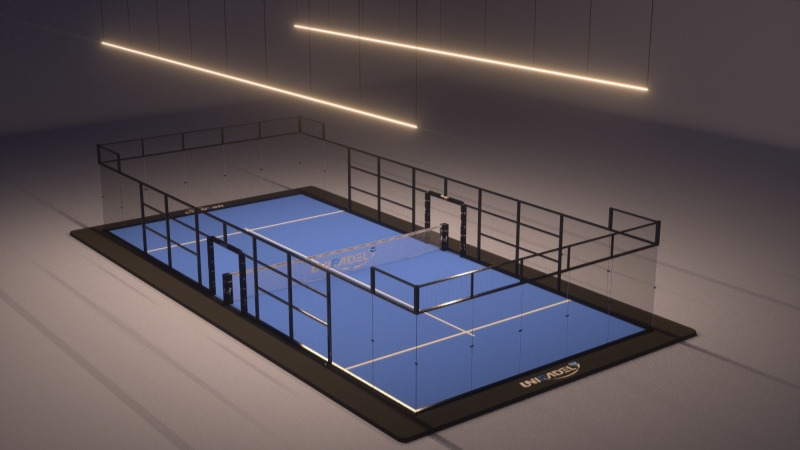

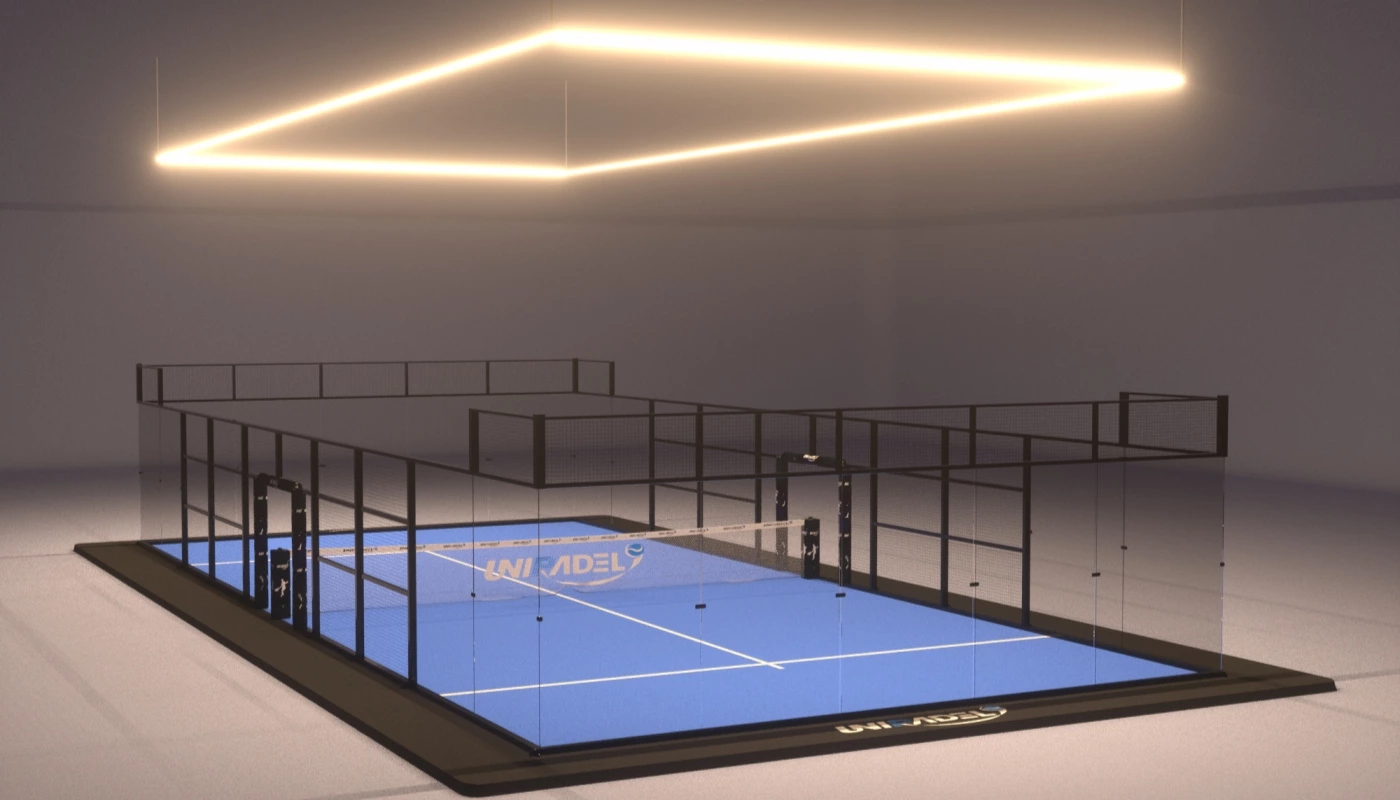

Advantages of Indoor Linear Lighting

1. Uniform, Dark-Effect-Free Illumination: 360° surround or linear layout provides complete coverage of the court space, avoiding shadows and dark areas, and improving visual clarity during shots and movements.

2. Low Glare for Greater Comfort: Diffuse linear light emission is softer than traditional spotlights, reducing glare from direct sunlight, making it suitable for long training sessions and matches.

3. Stable and Safe Electrical Performance: Constant current drive design with undervoltage, overvoltage, overtemperature, short circuit, and 6KV surge protection ensures long-term stable operation.

4. Efficient Heat Dissipation and Longer Lifespan: High-purity aluminum heat sink + superconducting PCB design ensures rapid heat conduction, reduces light decay, and extends the lifespan of the lamp.

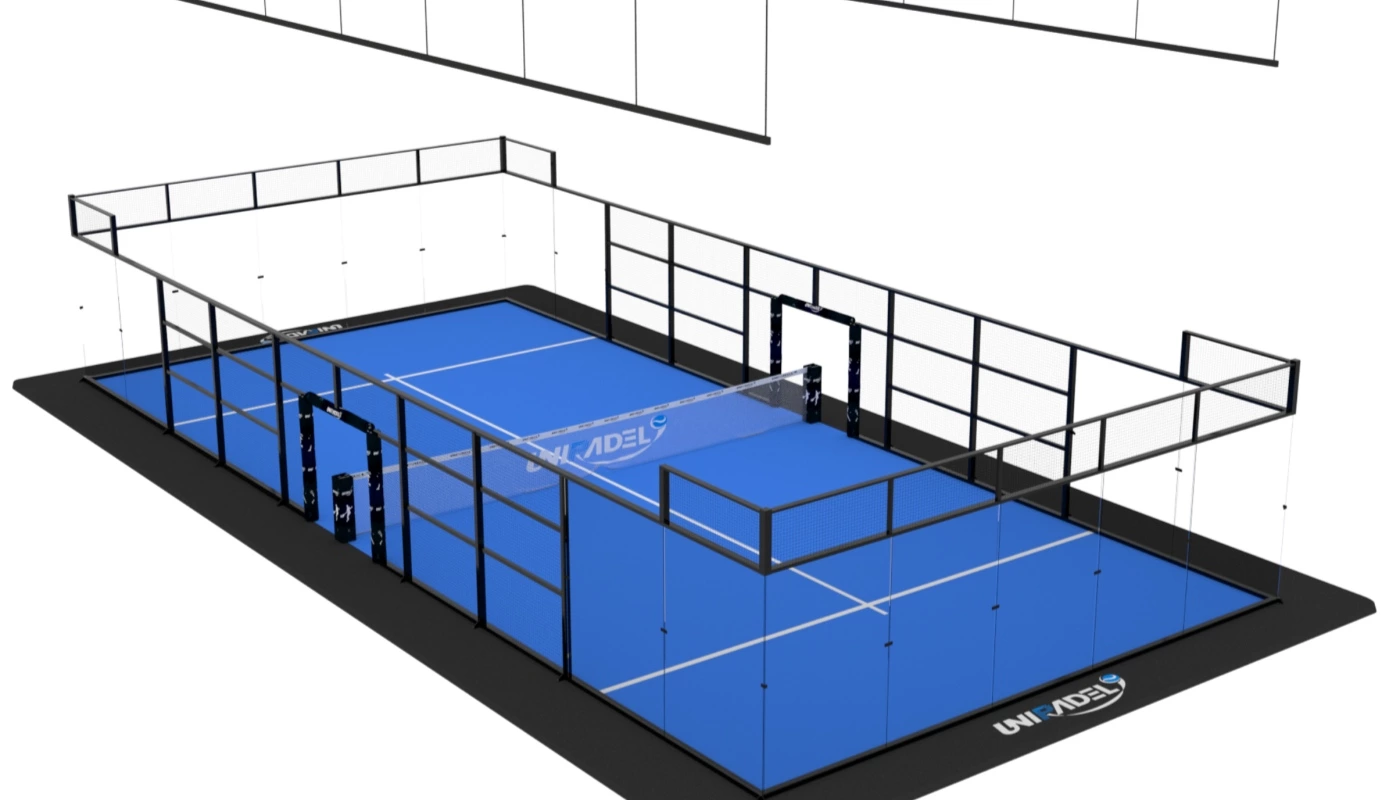

Hot-dip Galvanized Frame & Structure

Imported polyester powder electrostatic spraying, point-to-point welding, more stable and quieter. The mesh wire is welded directly on the machine to reduce the contact area of ​​the welding point. Standard: GB/T6728-2017, Grade: Standard zinc content 650g/m2, hot-dip galvanizing, thick galvanized layer, self-contained zinc layer, and has double anti-corrosion and anti-rust properties after spraying.

The indoor padel court galvanized steel mesh and galvanized steel column are both Q235B model, mesh 50x50mm, mesh 1x2m, frame column 50x30x2mm, column and corner column 80x80x3mm, height 3m, crossbar 80x80x3mm, lamp arm 50x50x2.5mm, height 3m, center column 80x80x3mm, height 980mm, surface powder spraying treatment.

Padel Glass

12mm tempered glass (1990mm*3000mm/piece, 180kg) complies with EN12150-2:2004 standard, compressive strength>125MPa, impact strength is 4 times higher than ordinary glass, light transmittance is 87%, resistant to 110°C temperature difference, surface drilling treatment, suitable for standard competition and entertainment type padel courts.
